The products we offer are as follows; a range of:

• Toilet cubicles

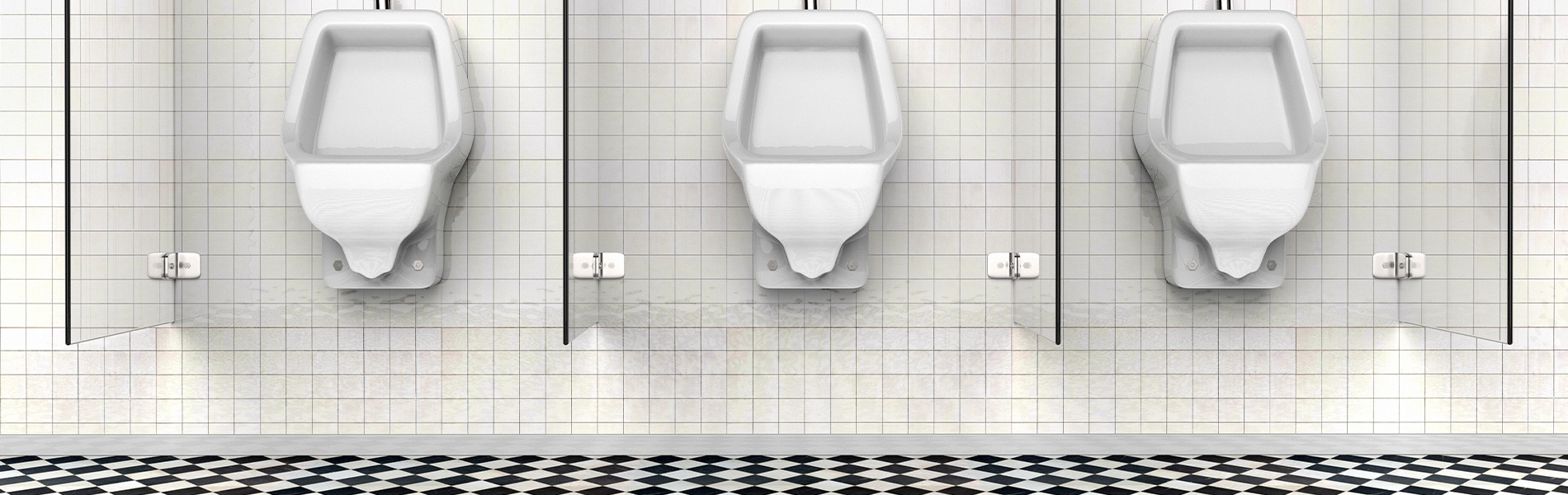

• Urinal dividing screens
• Shower cubicles
• Privacy screens
• Change room cubicles

All the above product range (except for the urinal dividing screens) come fully framed in our standard natural anodized aluminum channels. A range of special-colored channels can be supplied on special order with varying lead times and additional costs. In addition, our cubicles come standard with coat hooks, door stops, toilet roll holders & indicator bolts, and latches. All cubicles and screens can be mounted directly on the floor or elevated 150mm above the finished floor using our stainless steel leg anchors.

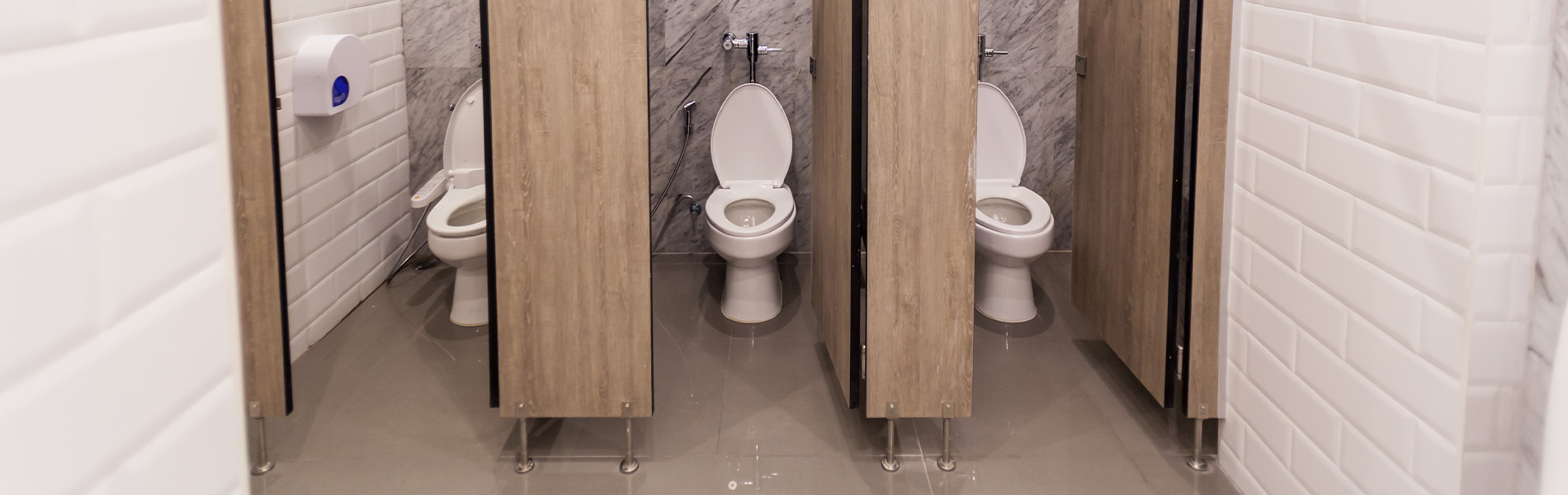

Standard toilet cubicle form of measurements for quotation purposes will be broken down as follows:

• Door
  Standard width 762mm x 1760mm height.
  Paraplegic doors maximum width 1000mm x 1800mm height.
• Dividing panel
  Standard width 1600mm x 1800mm height.
  Any dividing panel exceeding width of 1800mm will require a joint.
• Front stile
  Standard width 230mm x 1830mm height
• End stile/Wall stile
  Will range from 100mm to 180mm width by 1830mm high
• Custom wall stile
  Width to be determined by 1830mm height dependent on the design/room size specifics.

*Note – standard spacing between dividing panels for each toilet is 900mm.
